领域与间介：/Purpose and introduction

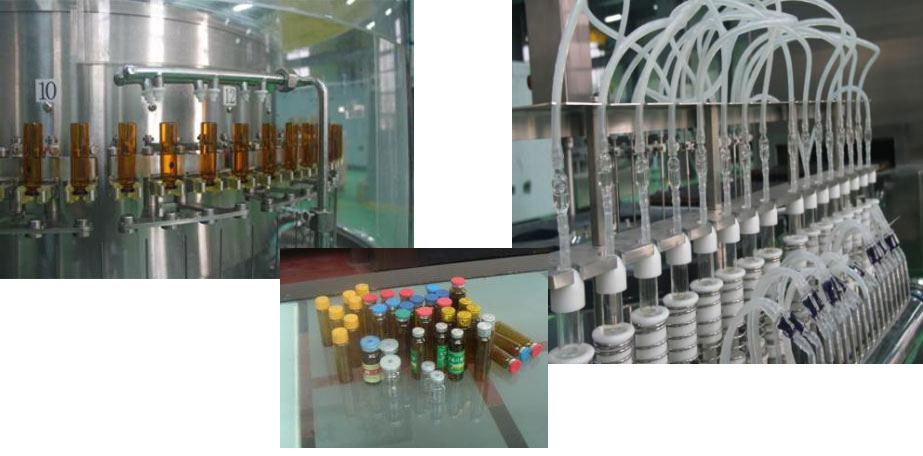

液体药液洗烘灌轧联调线由直列V型超超声检测检查波洗瓶机、桥隧式热气 无限循环无菌方法干燥箱、液体药液装灌轧盖机等组合而成，适用于于 5-30ml 等不同的规 格液体药液瓶的的生孩子。可达成对医疗耗材的生孩子中安瓿瓶淋水、超超声检测检查波洗、冲水、充 气、晒干无菌方法、冷去、装灌、轧盖等加工制作工艺 布骤的联调运营。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

作用:/characteristic

◆洗瓶机采用了机械设备手夹瓶，可用多种不同规格型号的可乐瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用于雾水喷针往复式监控放入方案，洗掉成果好，降低成本自然能源。并还拥有针架防会抖试验装置，增长喷针放入矿泉水瓶的准确的度，可以减少断针状况的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶所有热气输送管、喷针可以孤立分离开来，避免出现了交差造成的污染，完全符合GMP规范起来让；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前加装有缓存数据块，有庇护螺丝杆，减掉碎瓶的作用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选取布局进口货同时进行带，衔接拨块卸料口服药液，正常运作稳定性可以信赖In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆干燥箱运用红外线加水管，不锈钢材料加水管双重加水水温不规则性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装罐轧盖机先选配工业陶瓷泵、不锈钢材质泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装罐无瓶止灌，无瓶不轧盖功能表。Pieces filling without bottle filling, no bottle no rolling function.◆整线使用PLC总把控、直流三菱变频器、触模屏把控水平，运作相对稳定耐用。触模屏可界面呈现各电脑单机的运作的方式，各把控点的压差、压力表、传热系数、体温等界面呈现，各转换开关的方式和电脑错误代码界面呈现，电脑错误代码自我认识确诊和电脑错误代码数据分析及是排除的办法。使一整个产出过程中高于自动式化把控，联线还具有三机自动化静态平衡裝置，可以保障产出义均耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.利用加盟商的必须，还可供配选：According to the needs of customers, but also available for selection:◆simens、斯耐德、三菱PLC、台达等的品牌管理设备；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气工作压力、温度及超声清洗波屈服强度、玦尘粒子束、流速网络查测、报警灯、见证、打印文件系統。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、没有细菌防晒隔离霜器系统。Mixer ORABS, CRABS, aseptic isolator system.

高系统参数值：technical parameters

适于规格型号Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
包装计算精度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖符合标准率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
